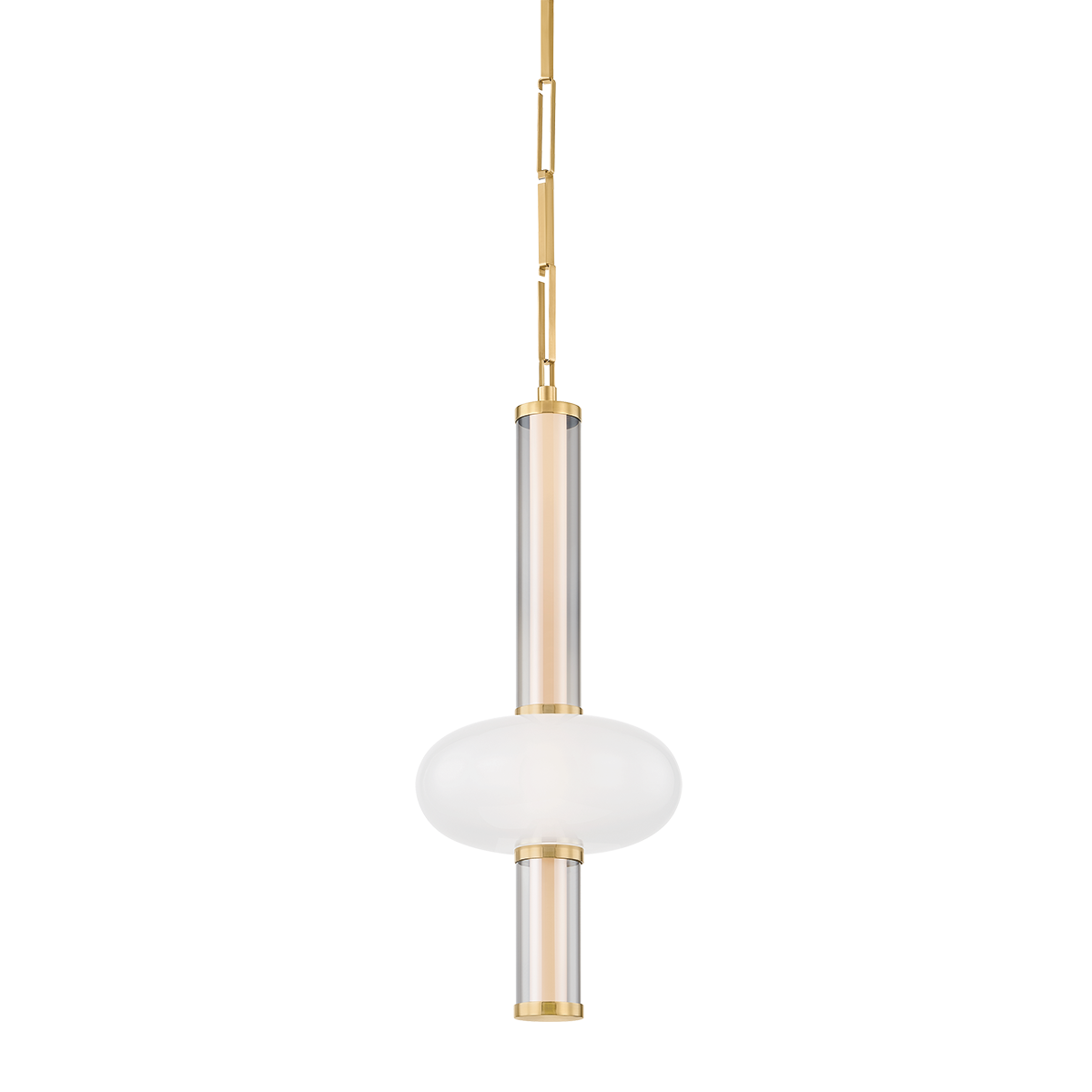

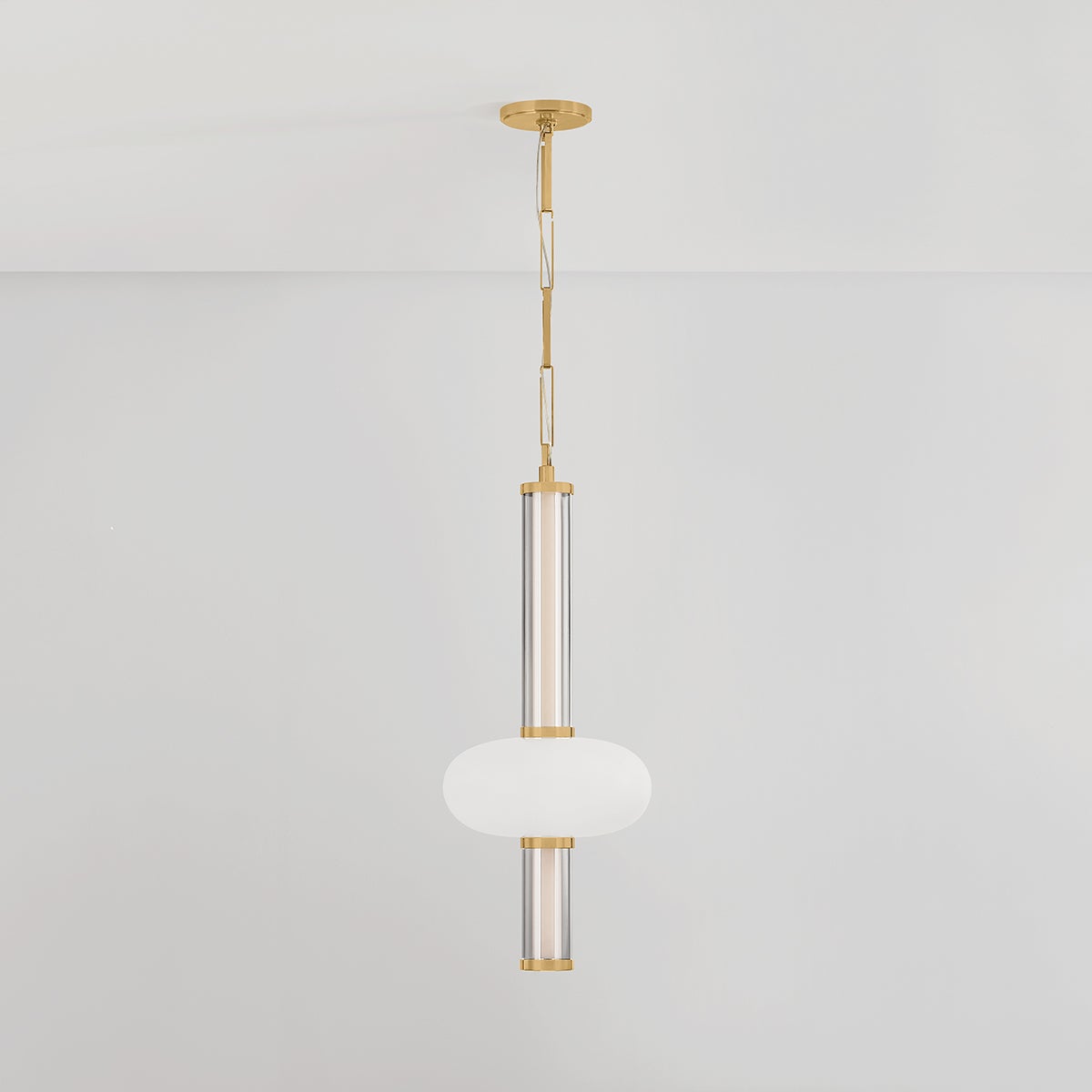

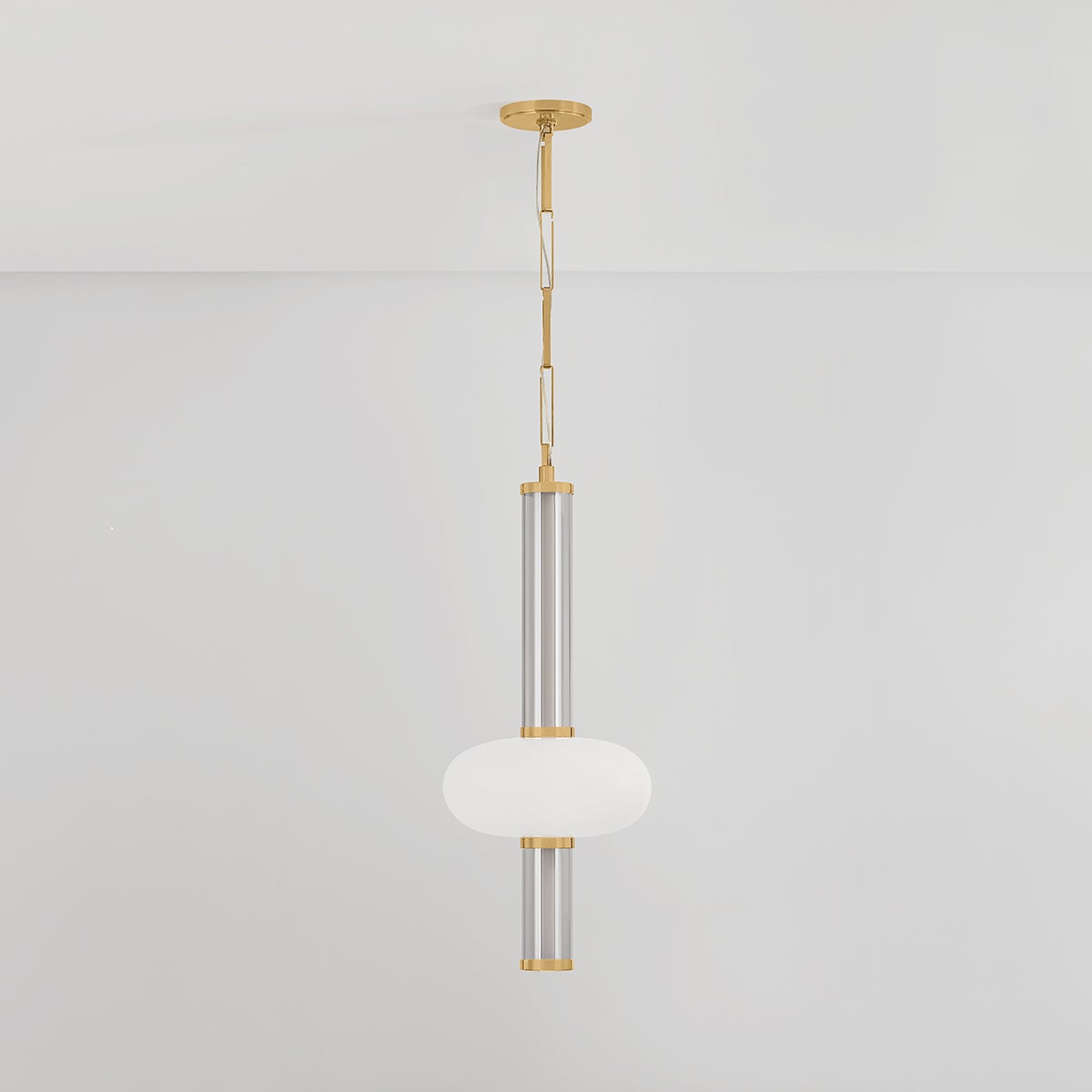

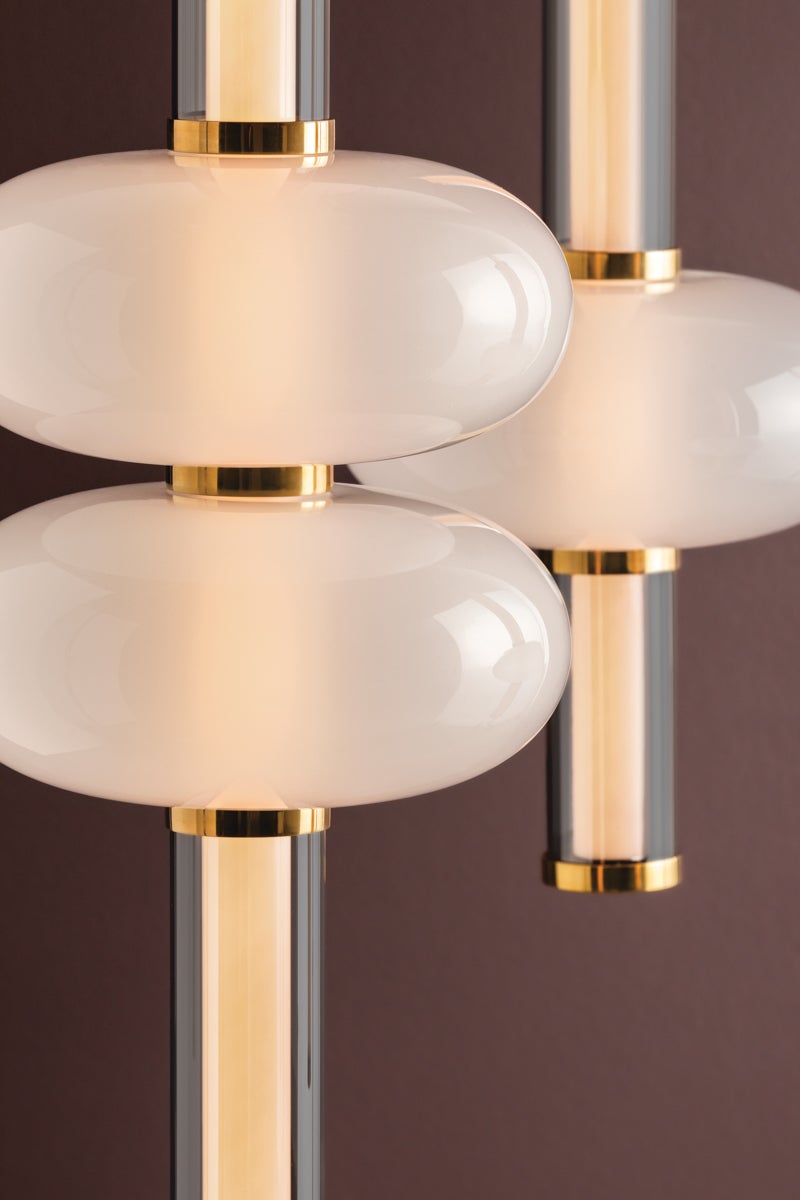

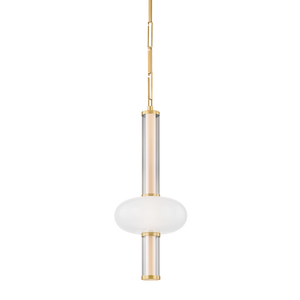

A study in layering, transparency, and colored glass techniques, Corbin has an ethereal windchime-like silhouette. The central tubes are accented by large oblong shades resembling beads on a necklace. These modern forms are enhanced by the use of clear and tinted ombre glass, which creates a stunning display when illuminated by the central LED tube. Corbin is available as a 1-light pendant, 1-light sconce, and 3-light chandelier.

SPECIFICATIONS

DIMENSIONS & DETAILS
Width/Diameter			11.5"
Height			28.5"
Weight			9.32 lb
Hang Type		72" chain
Minimum Height			34.5"
Maximum Height			102"
Sloped Ceiling Compatible				N
Living Finish				Y
Canopy	Shape	Length	Width/Dia.	Depth	Top to Center
	round	N/A	5"	N/A	N/A
Shade	Material	Finish	Top	Bottom	Height
	glass	clear inside etched	11.5"		5.5"
	glass	smoke	2.75"		13.5"
ELECTRICAL
CRI		90
Color Temperature		2700
Delivered Lumens		450
Title 24		N
Field Serviceable		N
Electrical Rating		etl damp
Cord Type		spt-1 silver w/ tinned ground wire
Dimmer Compatibility			elv, triac
Socket	Qty	Bulb Type	Socket	Max Watt.	Voltage
	1	led	integrated led	12 W	120
SHIPPING
Shipping Method			Ground
Carton	Length	Width	Height	Weight	Volume
	30"	20"	9"	13 lb	3.13 ft³

Crafted by Troy-CSL, Inc. *When applicable, we may remove wiring from images. *Please note, our fixtures do not come with bulbs, you may add the appropriate bulbs as an accessory.

DOWNLOADS

• Spec Sheet
• Assembly
• Installation Guide
• 3D
• CAD Block
• IES
• Care & Maintenance

AVAILABLE FINISHES

VINTAGE BRASS
(VB)

VINTAGE BRASS
A golden brass that will develop a rich patina over time, adding a layer of depth to the finish. The waxed surface softly reflects light while maintaining a satin appearance. Sophisticated and timeless, this finish perfectly complements ornate fixtures.
