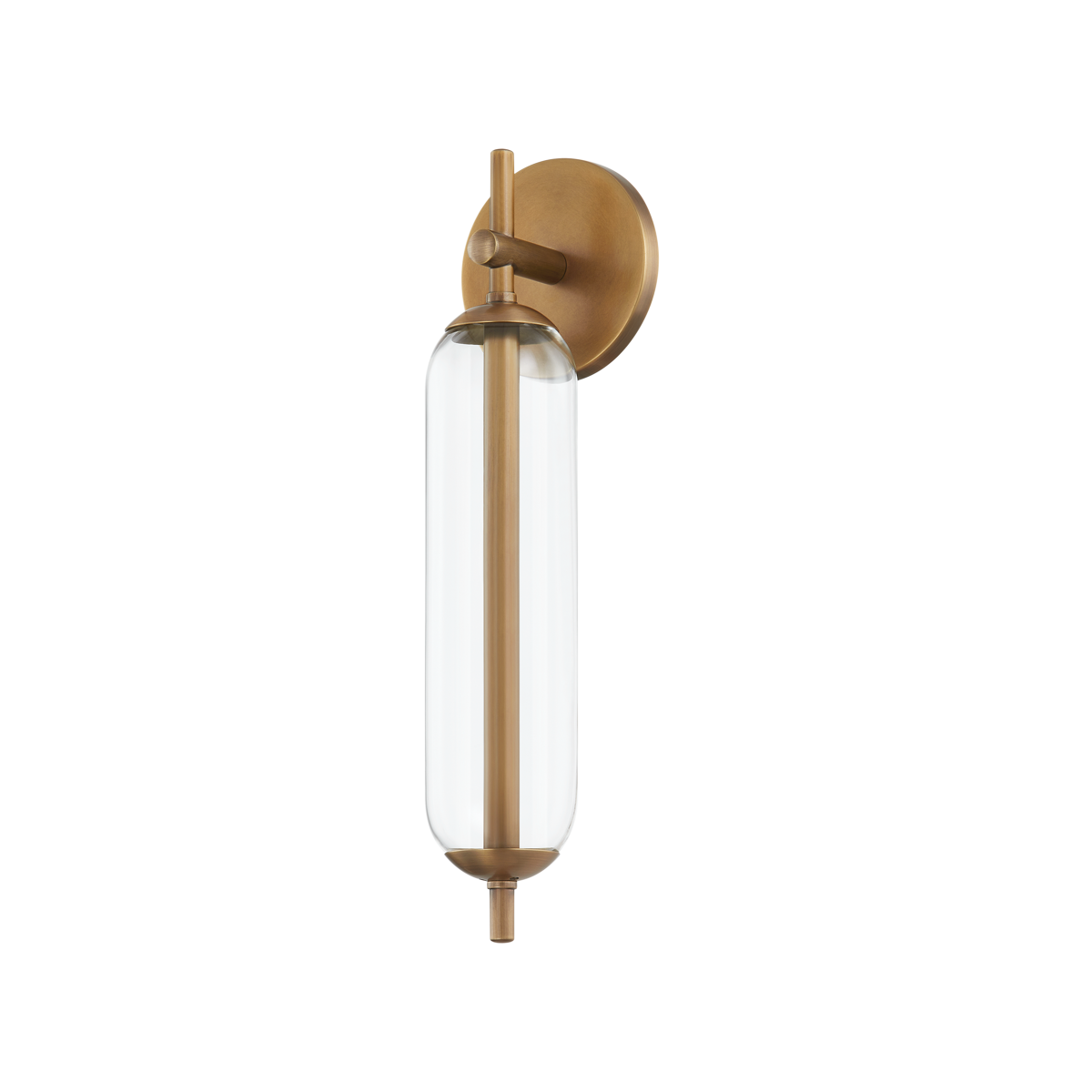

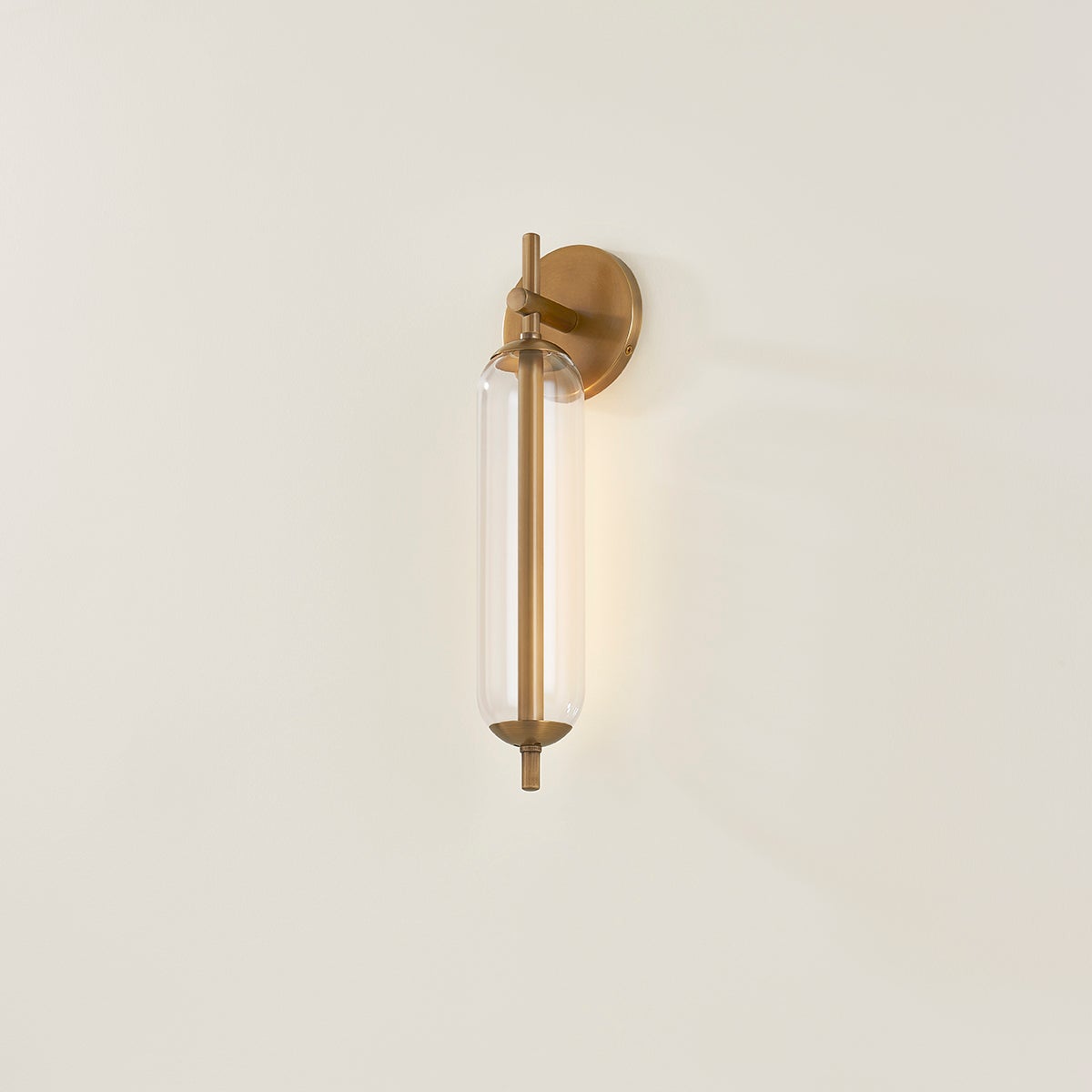

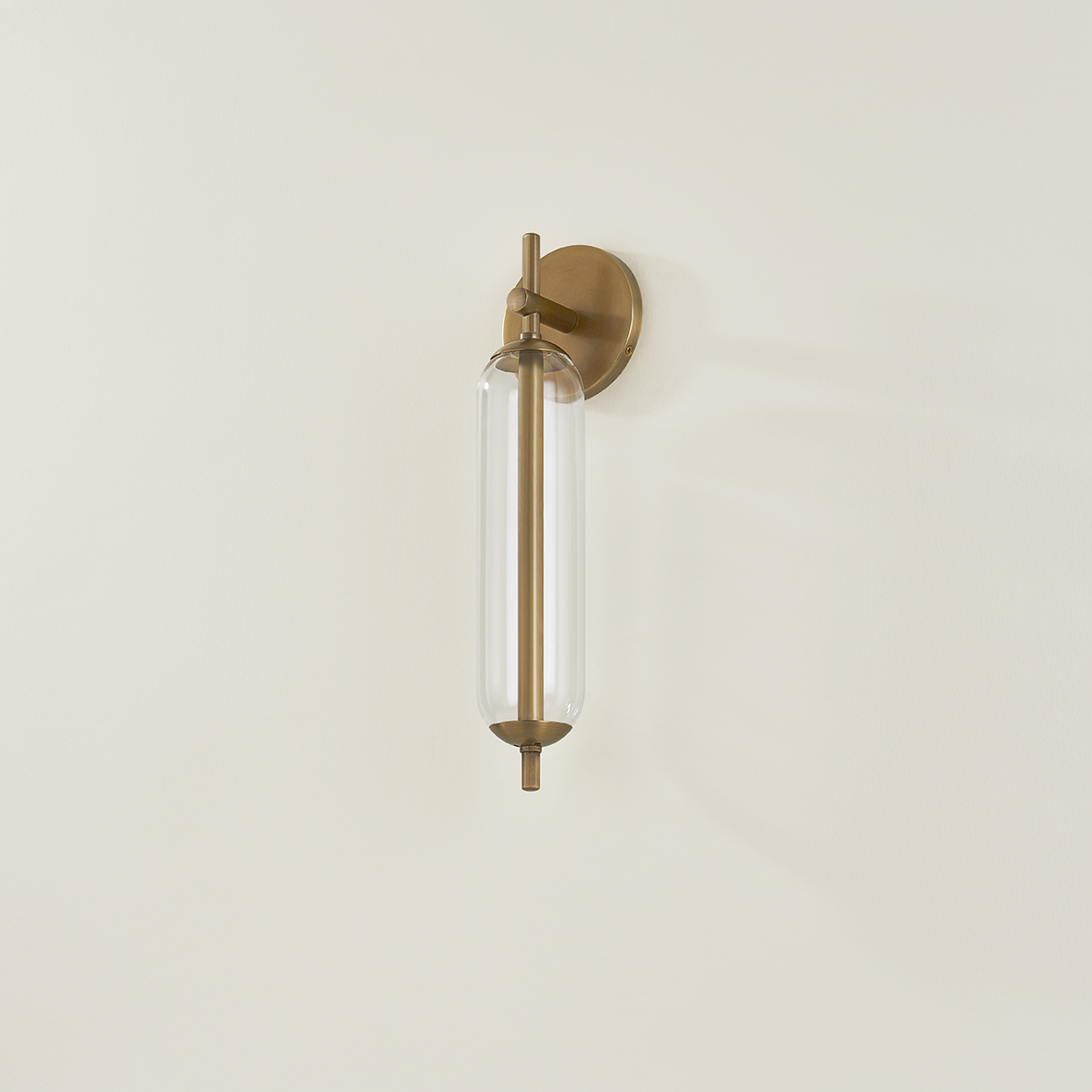

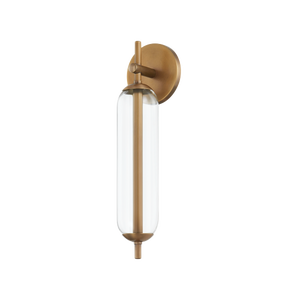

An exploration of modern design, Blaze rises to meet the growing demand for LED with its innovative, sleek construction. To create a dramatic diffusion of light without glare, the LED light source is positioned toward the wall for a beautiful, ambient glow. Finished in timeless Patina Brass, Blaze complements various exterior home styles with its versatility and style.

SPECIFICATIONS

DIMENSIONS & DETAILS
Width/Diameter			4.5"
Height			16.5"
Extension			4"
Top To Center			2.25"
Weight			2.32 lb
Living Finish				Y
Backplate	Shape	Length	Width/Dia.	Depth	Top to Center
	round	N/A	4.5"	N/A	2.25"
Shade	Material	Finish	Top	Bottom	Height
	glass	clear	3.25"		11.75"
	acrylic	white	0.5"		10.75"
ELECTRICAL
CRI		90
Color Temperature		2700
Delivered Lumens		225
Title 24		N
Field Serviceable		N
Electrical Rating		etl wet
Dimmer Compatibility			elv, triac
Socket	Qty	Bulb Type	Socket	Max Watt.	Voltage
	1		integrated led	6 W	120v
SHIPPING
Shipping Method			Ground
Carton	Length	Width	Height	Weight	Volume
	20"	12"	6"	4 lb	0.83 ft³

Crafted by Troy-CSL, Inc. *When applicable, we may remove wiring from images. *Please note, our fixtures do not come with bulbs, you may add the appropriate bulbs as an accessory.

DOWNLOADS

• Spec Sheet
• Assembly
• Installation Guide
• 3D
• CAD Block
• IES
• Care & Maintenance

AVAILABLE FINISHES

PATINA BRASS
(PBR)

PATINA BRASS
Inspired by the elegance of the old world, the deep, earthy hue of Patina Brass casts a warm glow over its surroundings, evoking a sense of nostalgia. Transitional in nature, this finish appeals to both traditional and contemporary spaces.
