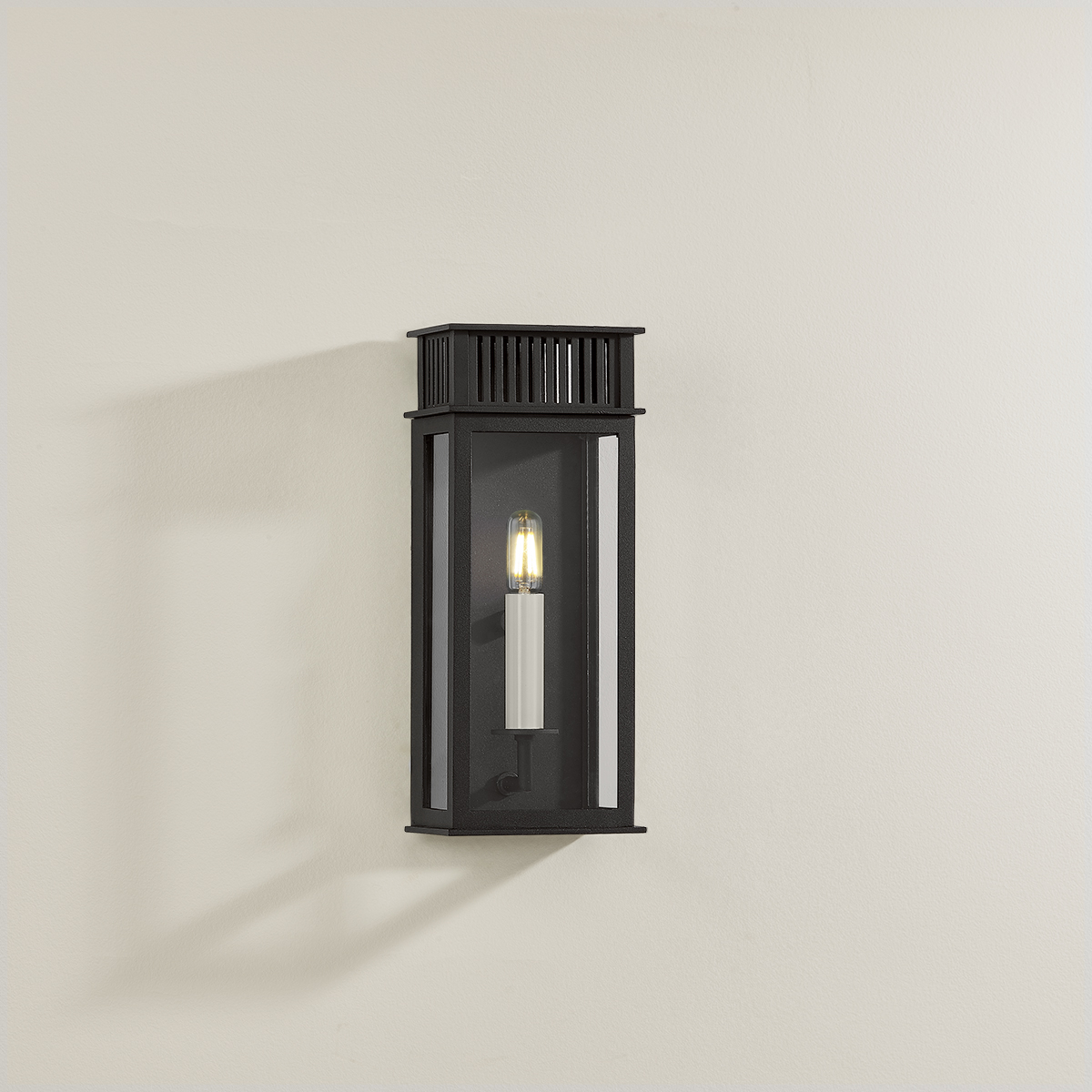

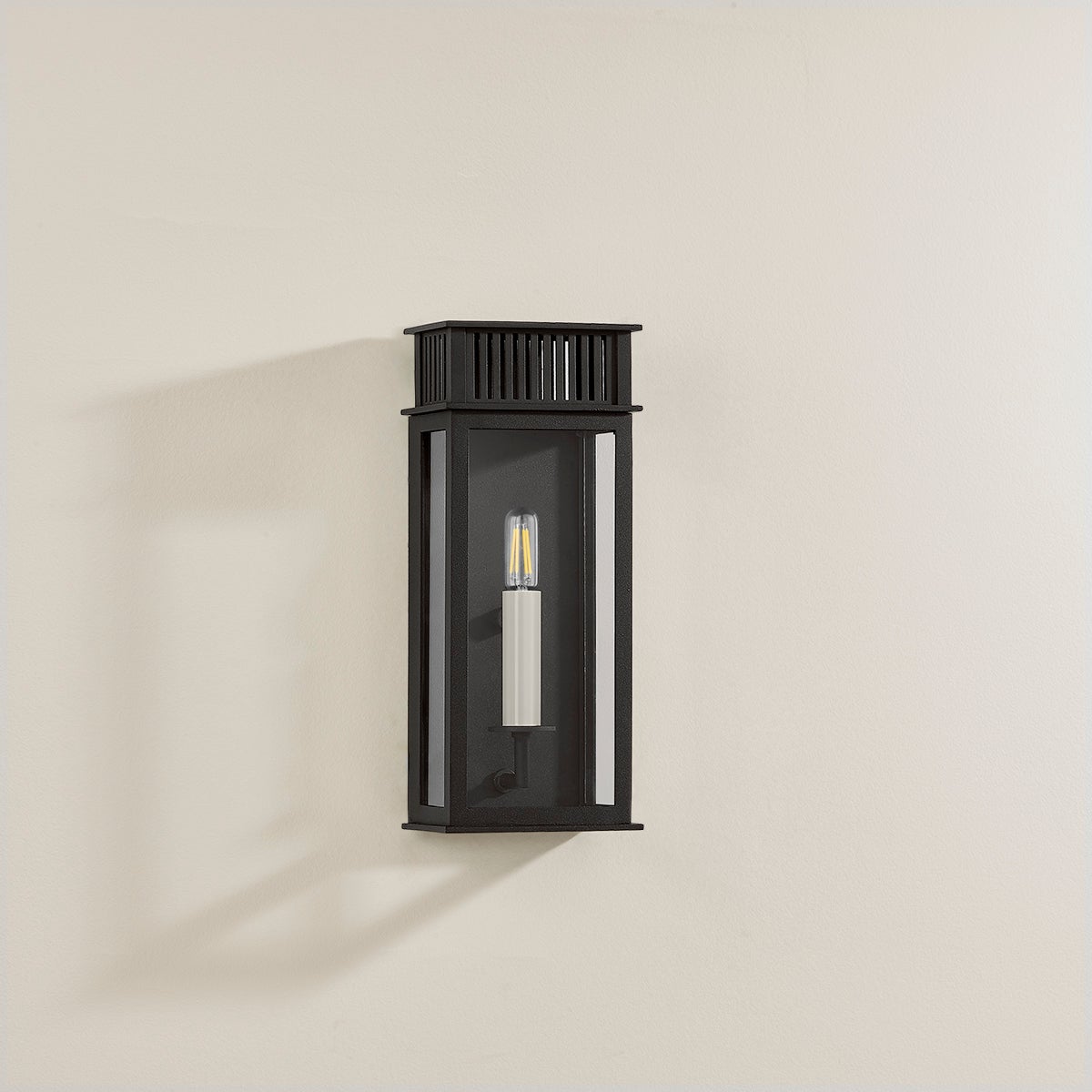

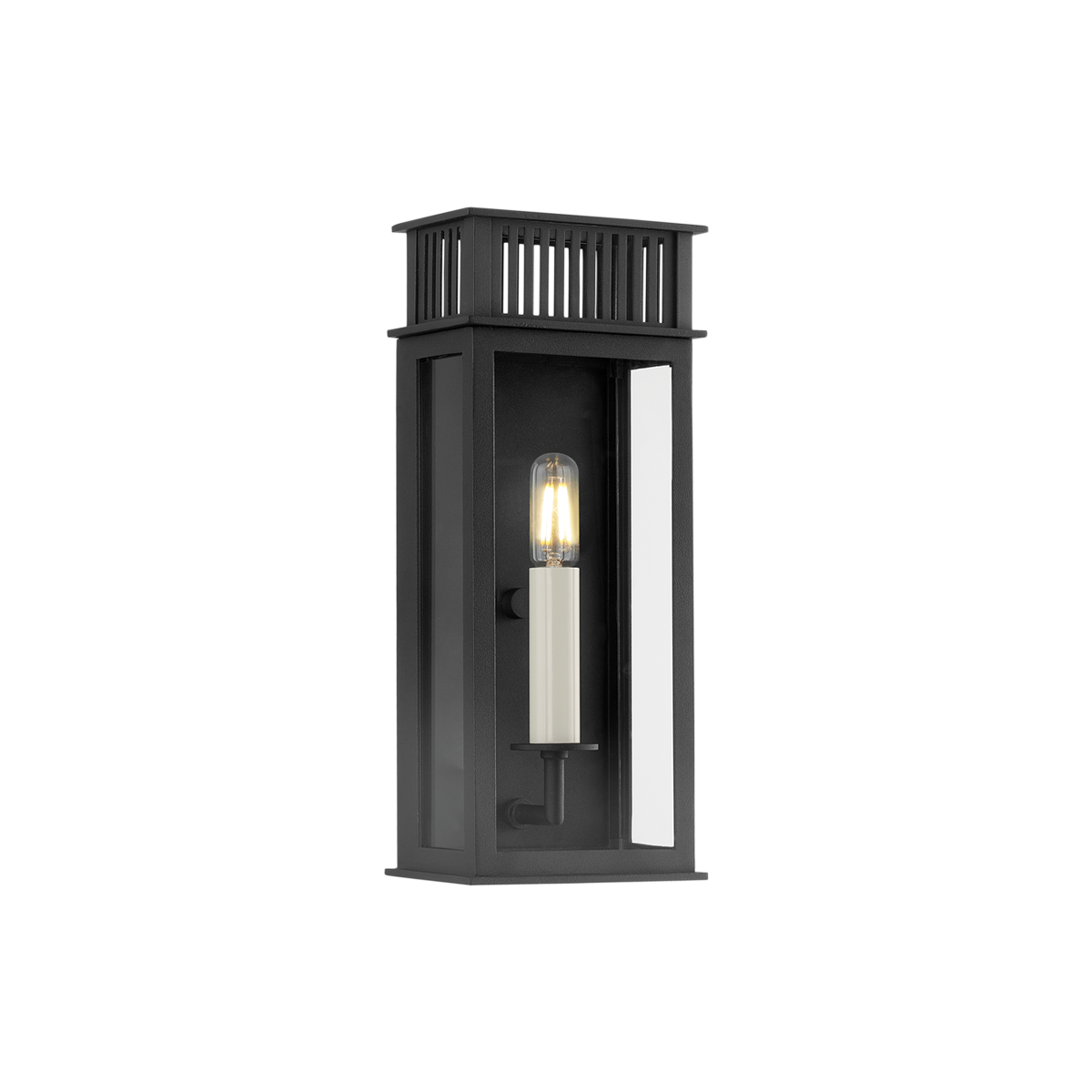

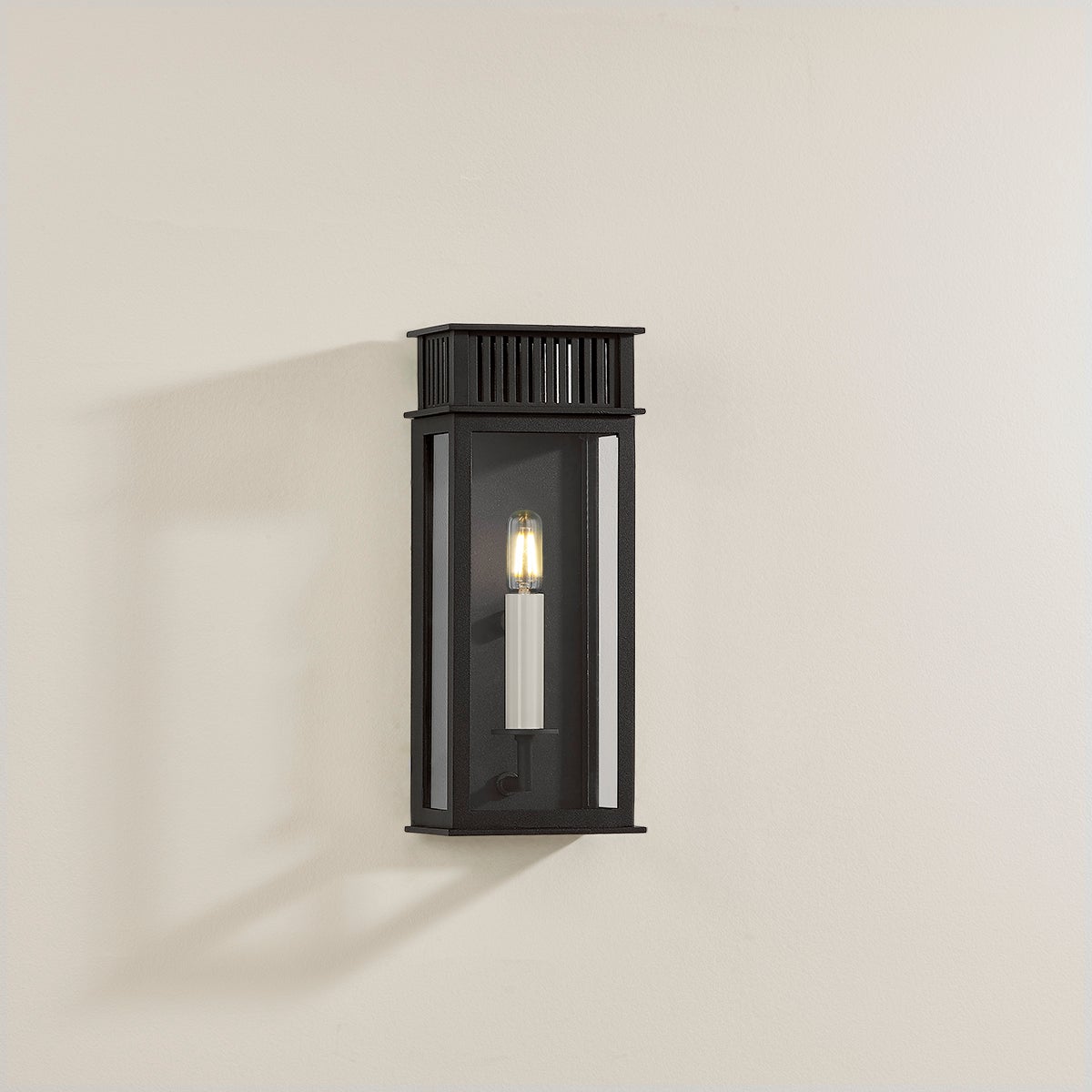

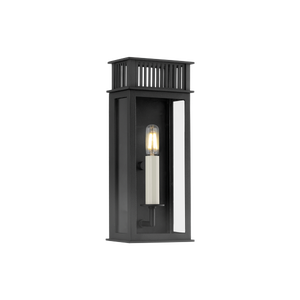

Inspired by vintage gas lanterns, the subtle details of Gridley nod to the past, while the slim box silhouette feels fresh and modern. The vented roof adds a touch of style to the otherwise minimal design, which is finished in Textured Black. Available in three sizes, Gridley complements any outdoor space with timeless simplicity.

SPECIFICATIONS

DIMENSIONS & DETAILS
Width/Diameter			5.5"
Height			13.25"
Extension			3.75"
Top To Center			7.75"
Weight			4.07 lb
Living Finish				N
Backplate	Shape	Length	Width/Dia.	Depth	Top to Center
	rectangle	N/A	4.75"	10.75"	7.75"
Shade	Material	Finish	Top	Bottom	Height
	glass	clear			10.75"
	glass	clear			10.75"
ELECTRICAL
Electrical Rating		etl wet
Socket	Qty	Bulb Type	Socket	Max Watt.	Voltage
	1	t8-3.5	e12 candelabra base	18 W	120
SHIPPING
Shipping Method			Ground
Carton	Length	Width	Height	Weight	Volume
	42"	17"	21"	7 lb	8.68 ft³

Crafted by Troy-CSL, Inc. *When applicable, we may remove wiring from images. *Please note, our fixtures do not come with bulbs, you may add the appropriate bulbs as an accessory.

DOWNLOADS

• Spec Sheet
• Assembly
• Installation Guide
• 3D
• CAD Block
• IES
• Care & Maintenance

AVAILABLE FINISHES

TEXTURE BLACK
(TBK)

TEXTURE BLACK
A bold jet black that makes a striking, cool statement. The very fine grains give a sense of dimension while the finish retains an overall smooth, sleek appearance in keeping with industrial design style.
