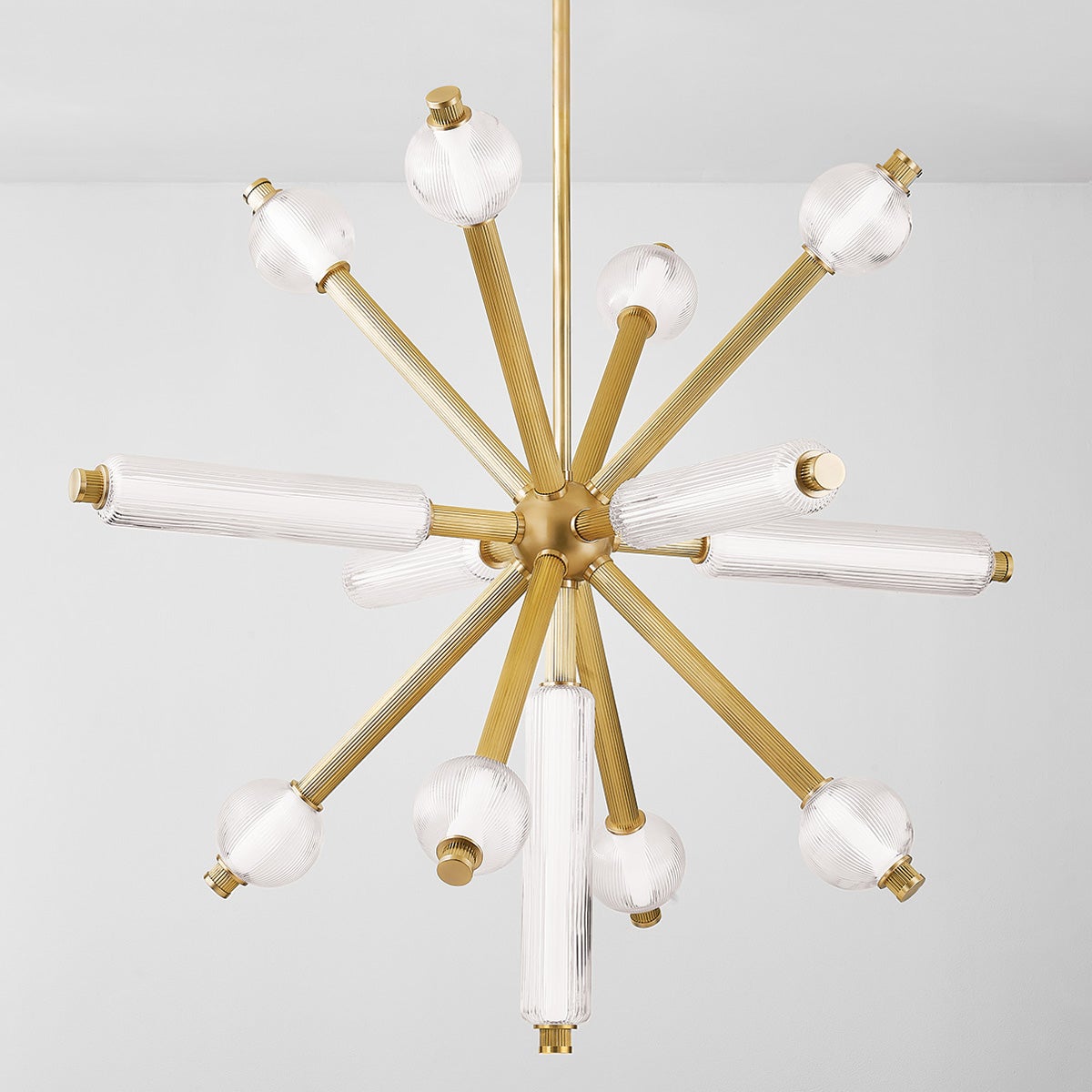

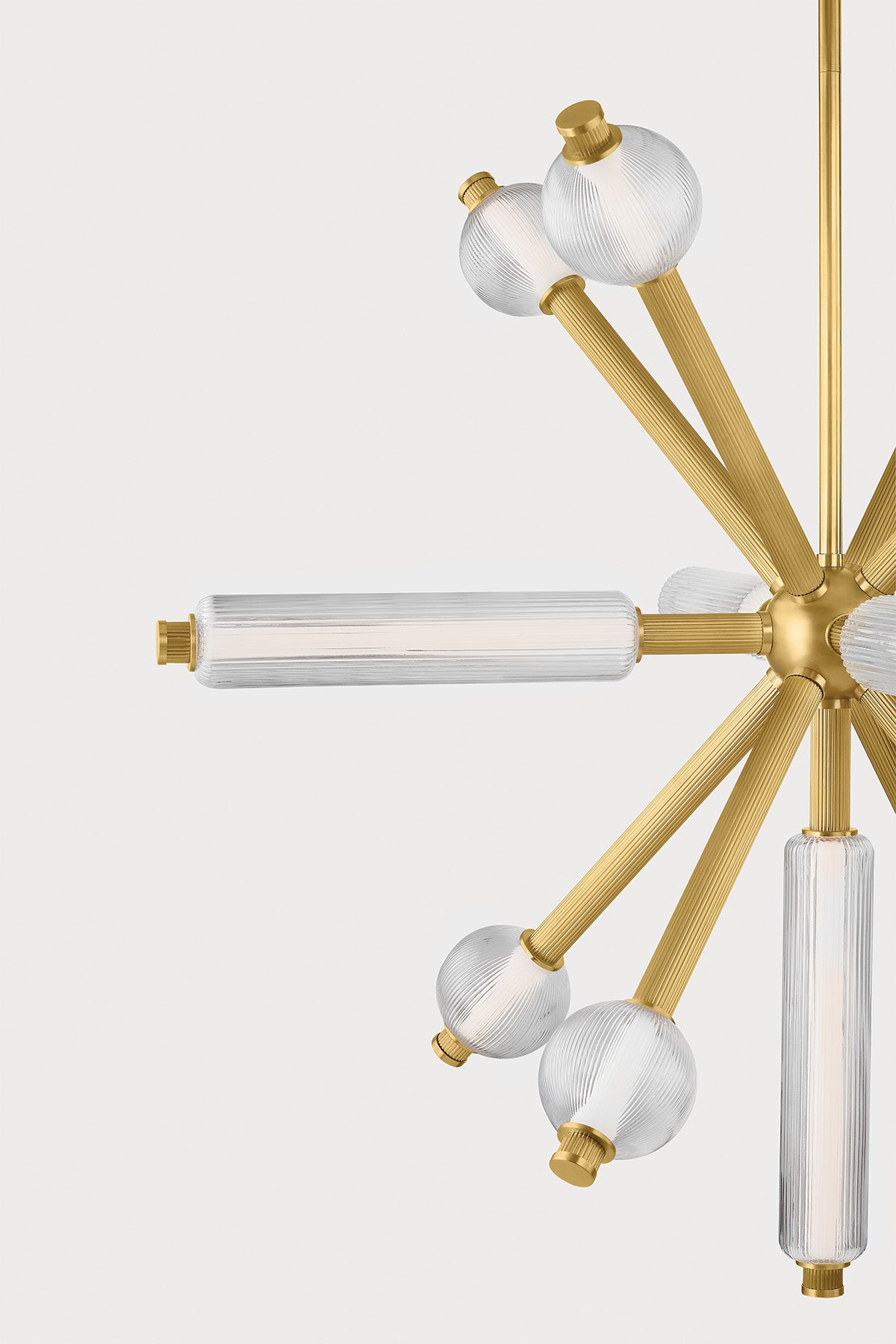

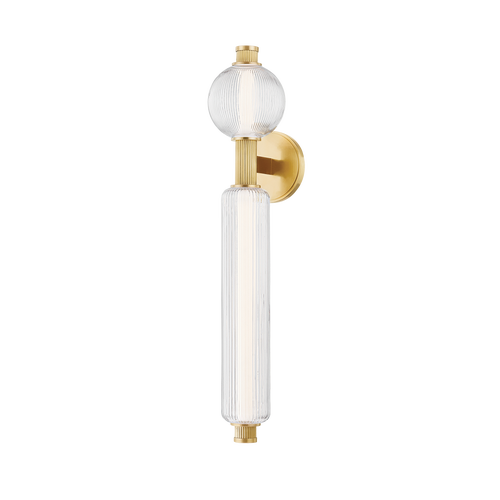

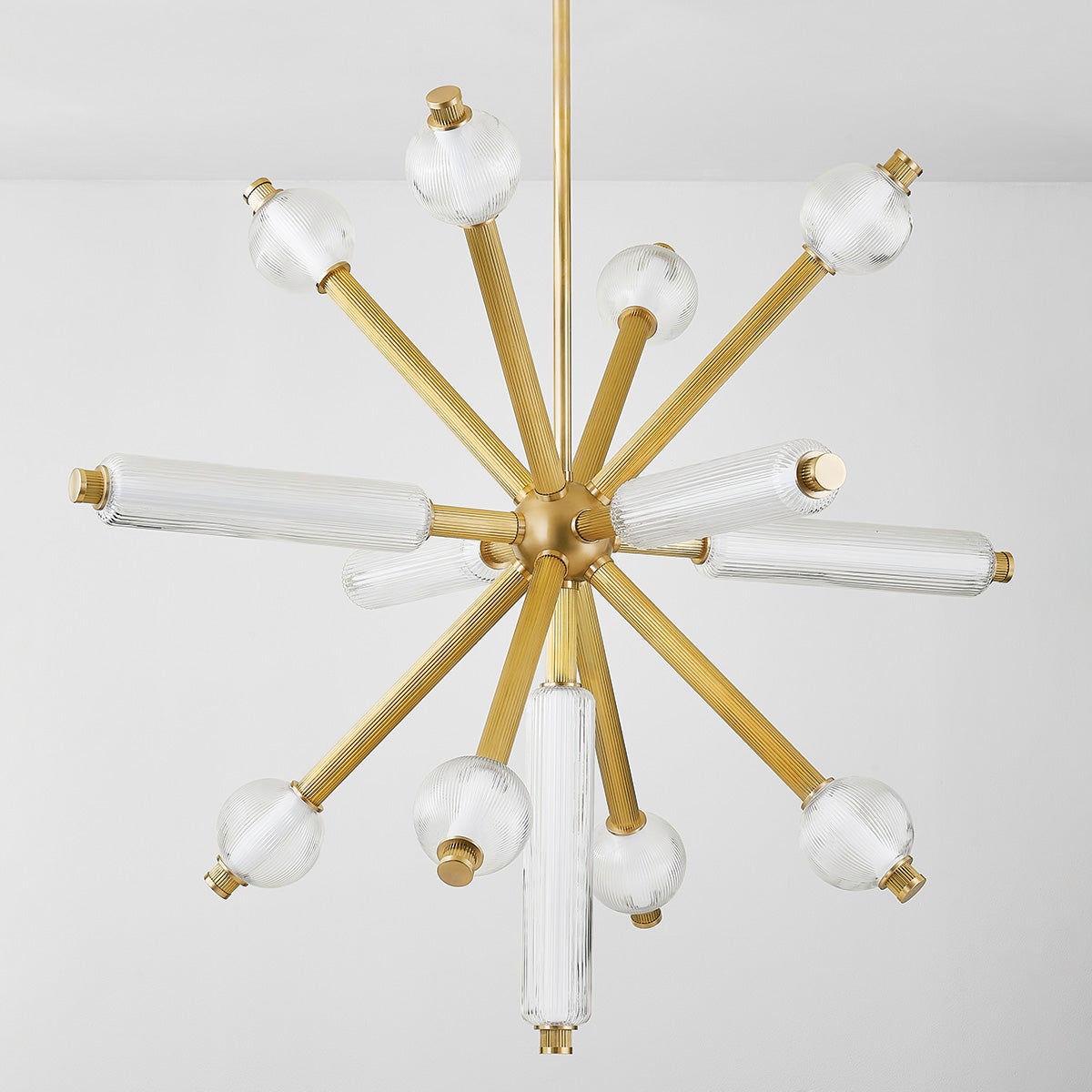

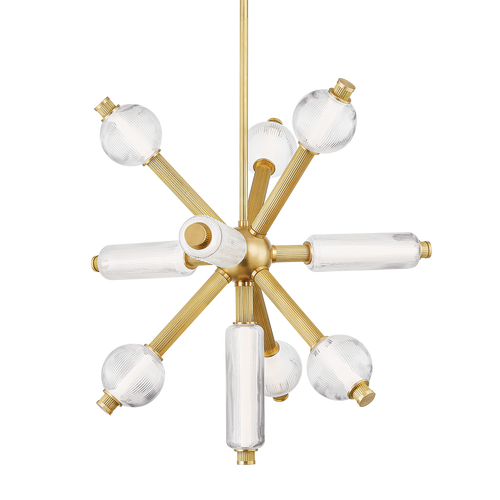

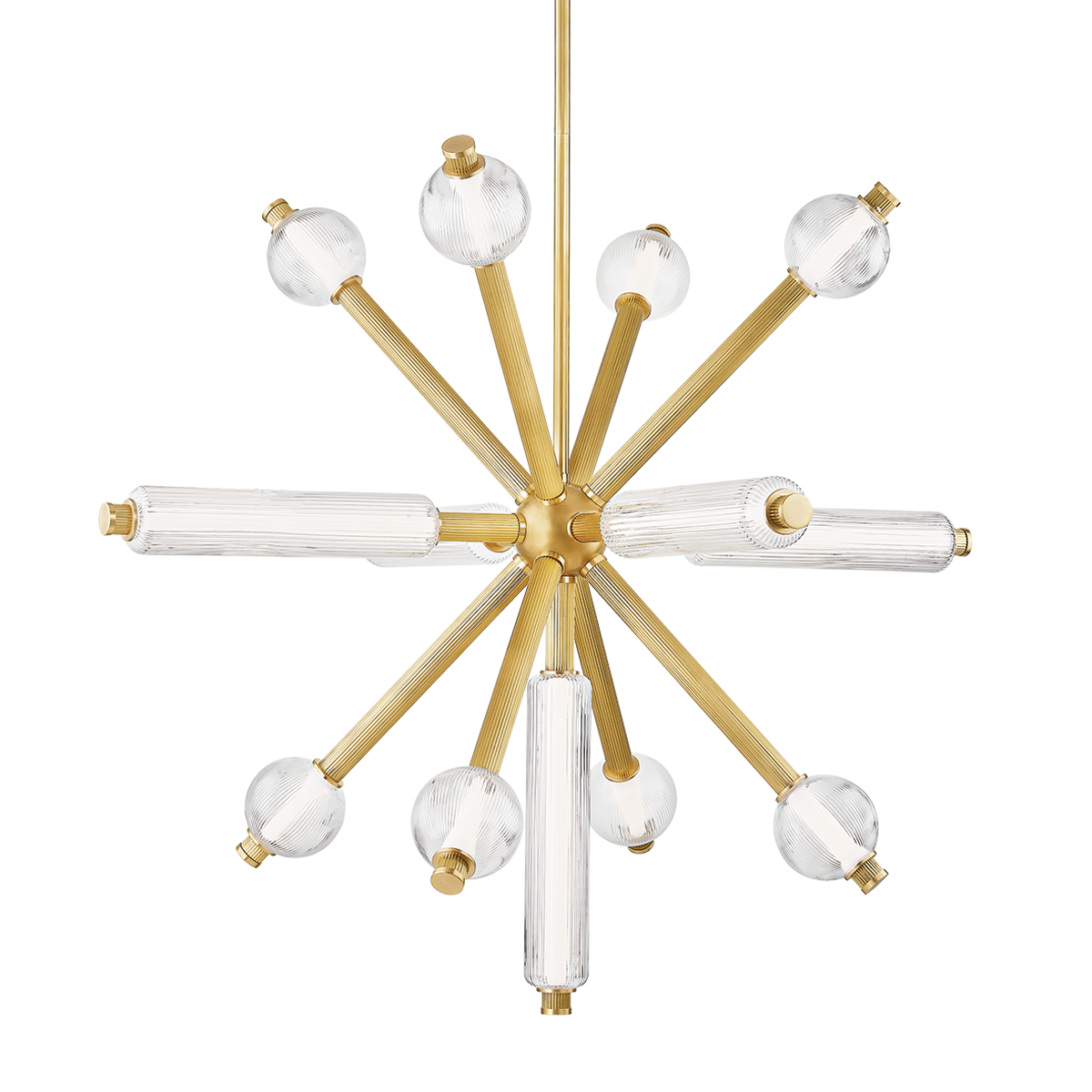

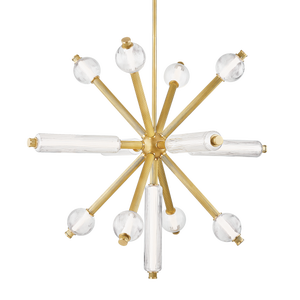

A nature-inspired spin on an iconic mid-century sputnik design, Atom brings a burst of illumination to modern interiors. This dynamic composition features glass spheres and cylinders that are brilliantly lit by energy-efficient LEDs. The reeded detailing of the arms is accented by smooth metalwork in a Vintage Brass finish. Atom is available as a 2-light wall sconce and 10 or 13-light chandeliers.

SPECIFICATIONS

DIMENSIONS & DETAILS
Width/Diameter			50"
Height			43.25"
Weight			41.67 lb
Hang Type		1-6" / 2-12" / 1-18" stems
Minimum Height			47.75"
Maximum Height			77.75"
Sloped Ceiling Compatible				N
Living Finish				Y
Canopy	Shape	Length	Width/Dia.	Depth	Top to Center
	round	N/A	5.5"	N/A	N/A
Shade	Material	Finish	Top	Bottom	Height
	glass	clear	5.5"		5.25"
	glass	clear	3.25"		16.25"
	acrylic	white	1.5"		16.25"
ELECTRICAL
CRI		90
Color Temperature		2700
Delivered Lumens		2050
Title 24		N
Field Serviceable		N
Electrical Rating		etl damp
Cord Type		b & w teflon w/ ground wire
Dimmer Compatibility			elv, triac, 0-10 volt
Socket	Qty	Bulb Type	Socket	Max Watt.	Voltage
	13		integrated led	53 W	120v to 277v
SHIPPING
Shipping Method			Ground
Carton	Length	Width	Height	Weight	Volume
	27"	27"	19"	54 lb	8.02 ft³

Crafted by Troy-CSL, Inc. *When applicable, we may remove wiring from images. *Please note, our fixtures do not come with bulbs, you may add the appropriate bulbs as an accessory.

DOWNLOADS

• Spec Sheet
• Assembly
• Installation Guide
• 3D
• CAD Block
• IES
• Care & Maintenance

AVAILABLE FINISHES

VINTAGE BRASS
(VB)

VINTAGE BRASS
A golden brass that will develop a rich patina over time, adding a layer of depth to the finish. The waxed surface softly reflects light while maintaining a satin appearance. Sophisticated and timeless, this finish perfectly complements ornate fixtures.
